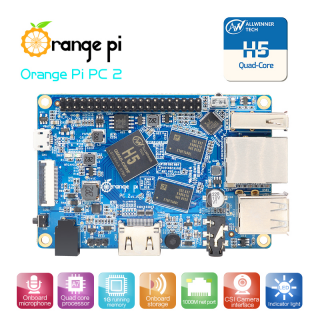

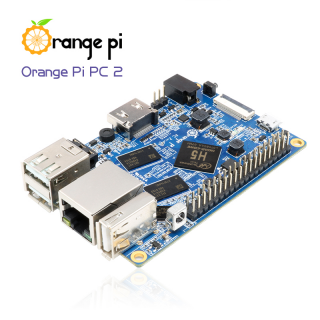

Orange Pi PC 2

Điểm tích lũy: 670 điểm
orange-pi-pc-2-B21 [390]
Hết hàng

Orange Pi PC 2 is an open-source single-board computer. It can run Android 5.1, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H5 SoC, and has 1GB DDR3 SDRAM.


- CPU:

  • H5 High Performance Quad-core 64-bit Cortex-A53
  • Integrated multimedia acceleration engine
  • Hardware Java acceleration
  • Integrated hardware floating-point coprocessor

- GPU:

  • Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage
  • High Performance Hexa-core Mali450
  • OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL
  • 40 GFlops, Pixel fill rate greater than 2.7GPixel/s

- Memory (SDRAM): 1GB DDR3 (shared with GPU)

- Onboard Storage: TF card (Max. 64GB) / NOR flash(2MB)

- Onboard Network: 1000M/100M Ethernet RJ45

- Video Input:

  • Supports 8-bit YUV422 CMOS sensor interface
  • Supports CCIR656 protocol for NTSC and PAL
  • Supports SM pixel camera sensor
  • Supports video capture solution up to [email protected]

- Audio Output: 3.5 mm Jack and HDMI

- Power Source: DC input can supply power, but USB OTG input don’t supply power

- USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG

- GPIO(1x3) pin: UART, ground.

- Size: 85 mm × 55mm
